The TH CLIP 710 is Thung Hing's Clip Locking Metal Roof System. The unique profile of the TH CLIP 710 was specially designed for added strength on the roof. In addition, the higher rib height (39mm) enable tighter gap coverage which significantly minimizes water leakage between roof sheets. As the name Clip Locking suggest, the higher rib roofs also act as inter locking mechanism between roof sheets. This not only simplify the installation process, the innovative design also ensures each roof sheets are accurately aligned to each other.

Another key benefit of the special higher rib profile is to allow excellent water discharge capability even at a minimum roof pitch of just 1 degree. Moreover, the higher rib height (39mm) enable tighter gap coverage which significantly minimizes water leakage between roof sheets.

Besides the innovation on the profile designs, Thung Hing also ensure material of the highest quality are used and the latest fabrication technology are deployed. Thung Hing uses high grade steel sheets such as  Zincalume, and Clean Colorbond to fabricate metal roof products. The selected alloy steel raw material are chosen also for their strong anti corrosion properties built in. To ensure material quality consistency and strength, we use the latest Cold Roll Form process. This method ensures the metal roof is high tensile throughout the entire sheet. This method allows us to fabricate long span metal roofing or wall claddings.

For buildings structures that has very low slopes and long spanning roofs, TH CLIP 710 is a perfect choice of metal roofing. TH CLIP 710 is also ideal for vertical wall cladding. This product is highly recommended for exhibition halls, warehouses, factories and many more building structures.

TH CLIP 710 sizes can be tailored to your building requirements. Delivery nationwide is free of charge. Contact us now to find out more about our latest promotion and new product listings.

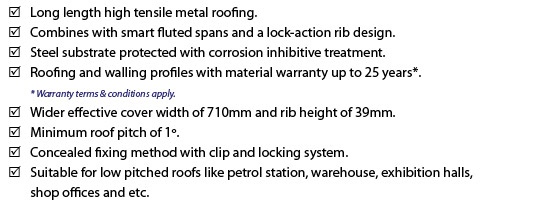

TH CLIP 710 Benefits

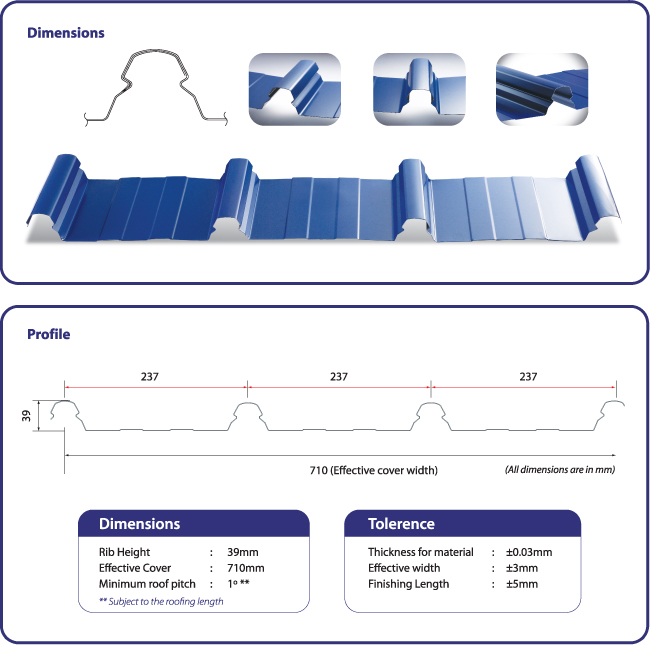

Dimension

Installation Method

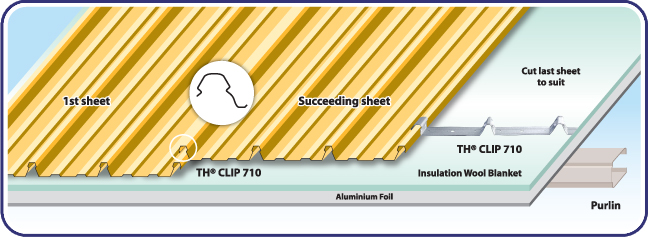

The first sheet is positioned and then pressed over the fixing clip which must be accurately aligned and fixed to ensure positive engagement between the roof sheet and the fixing clips. A 'click' indicates a positive lock. The second and subsequent sheets are laid each time after a new set of fixing clips have been placed firmly over the male rib of the preceding sheets.

TH CLIP 710 cannot be end lapped.
(Use long length sheets from a mobile rollformer.)

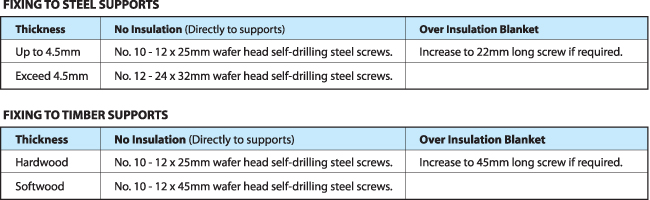

Recommended Fasteners - 4 Fasteners per Clip
