Thung Hing Floor Deck 51 is a special purpose steel sheet to assist in concrete floor construction. This new technology changes the way concrete floor are constructed particularly useful to solve the common concrete floor formwork problems.

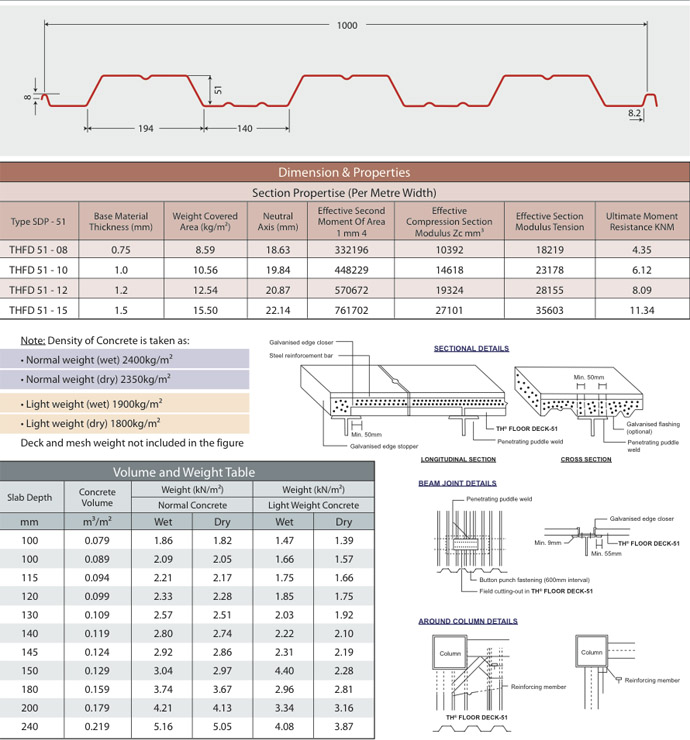

The TH Floor Deck 51 is trapezium-shaped steel sheet that is an important part of a composite steel deck floors. Steel Deck Flooring typically consist of 3 major elements, TH Floor Deck 51, concrete and light mesh to control cracking. The profiled steel deck acts as easy to install shuttering to contain the setting concrete.

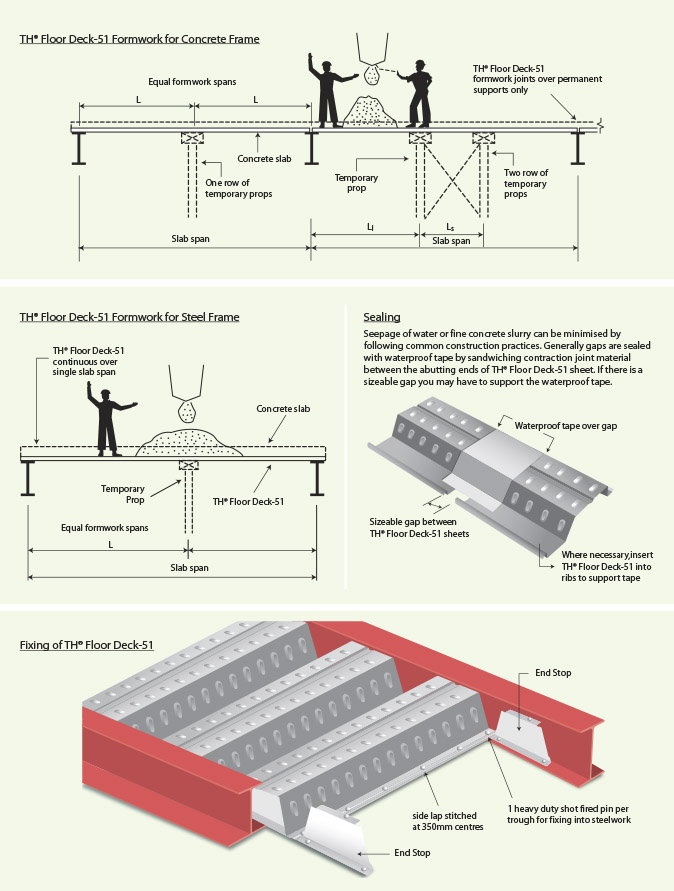

Traditionally, wood or planks were used as shuttering or formwork. The conventional plank wood shuttering had many limitations. 4x4 posts and scaffolding were used to support plywood sheets upon which concrete could be placed. But this method is tedious and has many safety issues. The major disadvantage of the conventional formwork using plank wood is time consuming.

TH Floor Deck 51 is made of high tensile steel, with minimum yield strength of 550MpA and minimum zinc coating mass of 270g/m3. This material quality is able ensure that the TH Floor Deck able to support formwork in either concrete frame or steel frame structures. Most importantly, the structural design and superior material quality is essential in securing site safety.

Another important feature of the TH Floor Deck 51 is that it is designed to help speed up the concrete floor construction process. TH floor Deck are perforated to allow project managers to clearly communicate on installation procedures and minimize accidents.

The slab depth required is minimized by the profile design. Concrete usage is further reduced by the profile design. Likewise, the structural strength efficiency improvement also lowers the concrete weight on the structure. This positively impacts the costs of the building project.

Delivery nationwide is free of charge. Contact us now to find out more about our latest promotion and new product listings.
