MEDER MK23-85-C-2 Series Reed Switch
Mobicon-Remote Electronic Pte Ltd
Mobicon-Remote Electronic Pte Ltd Is An Electronic Components Distributor Company Which Is Located In Singapore.
DESCRIPTION

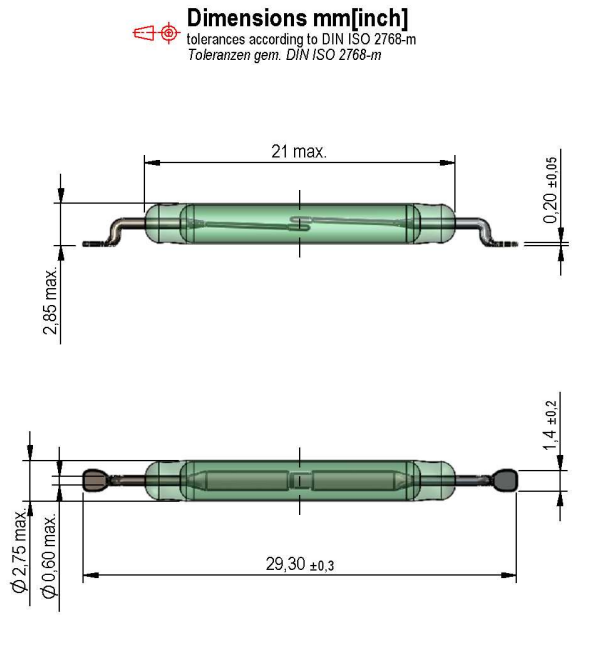

The MK23-85 surface mount reed switch is a vacuum high power switch capable of switching high voltages up to 1,000 VDC. Also this series features a glass length of just 21mm and diameter of 2.75mm. Its rated power is 100 W, switching voltage 1,000 VDC, and switching current 1 Amp DC. The MK23-85 SMD reed switch is a bare glass version of our surface mount reed sensors. These bare glass versions offer a more economic and compact design as compared to our over-molded reed sensors. And they are sold in Tape & Reel packing (according to IEC 286/part 3) suitable for pick and place automation.
SPECIFICATIONS
Contact Form 1A (SPST) Normally Open (N.O.)
APPLICATIONS
Used in On/Off control switch, proximity, motion, position detection in general purpose, appliance, automotive, military and aerospace, safety and security, telecommunications, test and measurement (ATE), transportation applications and much more.
Data Sheet Link https://standexelectronics.com/viewer/pdfjs/web/viewer.php?file=https%3A%2F%2Fstandexelectronics.com%2Fwp-content%2Fuploads%2F2015%2F05%2FMK23_V02.pdf
