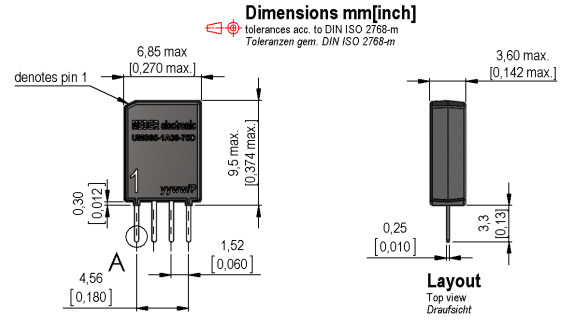

MEDER UMS05-1A80-75D UMS Series Reed Relay
Mobicon-Remote Electronic Pte Ltd
Mobicon-Remote Electronic Pte Ltd Is An Electronic Components Distributor Company Which Is Located In Singapore.
Equiry Form
SPECIFICATIONS
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 170VAC, 170VDC - Max
Coil Current 12.5 mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Seal Rating -
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 0.2 ms
Release Time 0.1 ms
Operating Temperature -20°C ~ 85°C
Contact Material -
Coil Resistance 400 Ohms
