SPECIFICATIONS
PPAP No
PPAP No
Type Dry
Contact Arrangement 4PST-NO
DC Coil Voltage (V) 24
Coil Current (mA) 24.37
Coil Resistance (Ohm) 985
Maximum Contact Resistance (MOhm) 150
Insulation Resistance (Ohm) 10G(Min)|1T(Min)
Maximum Pick-Up Voltage 18VDC
Maximum AC Switching Voltage (V) 1K
Maximum DC Switching Voltage (V) 1K
Maximum Switching Current (A) 1
Minimum Dropout Voltage 2VDC
Maximum Carry Current (A) 2.5
Isolation Across Contacts 2KVDC(Min)
Isolation Across Coil and Contacts 2KVDC(Min)
Maximum Switching Power 100W
Operate Time (ms) 1.1
Release Time (ms) 0.1
LED Indicator No
Push to Test Button No
Coil Suppression Diode No
Mounting Through Hole
Termination Style PC Pin
Number of Terminals 10
Relay Construction Non-Latching
Minimum Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 70

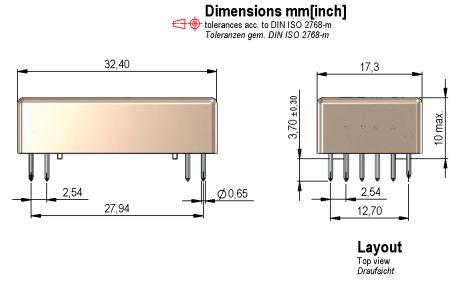

Product Length (mm) 32.4
Product Depth (mm) 17.3
Product Height (mm) 10
