Standex CRR03-1AS (250) CRR Series Reed Relay
Mobicon-Remote Electronic Pte Ltd
Mobicon-Remote Electronic Pte Ltd Is An Electronic Components Distributor Company Which Is Located In Singapore.
Equiry Form
SPECIFICATIONS
Contact Configuration SPST
Coil Voltage 3V dc
Mounting Type Surface Mount
Maximum Switching Current DC 0.5 A
Maximum Switching Voltage AC 170V ac
Maximum Switching Voltage DC 170V dc
Coil Power 129mW
Coil Resistance 70 Ω
Length 8.6mm
Height 3.4mm
Depth 4.4mm

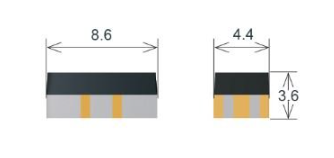

Dimensions 8.6 x 4.4 x 3.4mm
Isolation Coil To Contact 1.5kV dc
Contact Resistance 150 mΩ
Minimum Operating Temperature -40°C
Maximum Switching Power DC 10 W
Contact Material Rhodium
Terminal Type PCB Pin
Life 1000000000 (Electrical) cycles
Operating Temperature Range -40 → +125°C
Special Features Gold Plated Leads
Number of Poles 1
Maximum Operating Temperature +125°C
Operating Time Including Bounce 0.1ms
