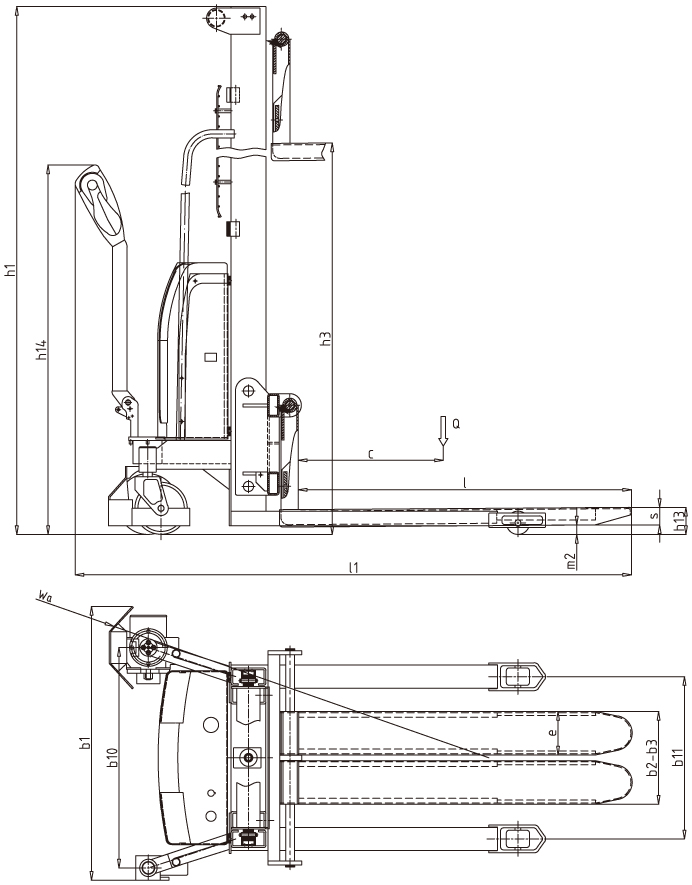

Model |
CDDYG-E 1016 / 1020 / 1025 / 1030 |
Capacity
Q (kg) |
1000 |
Load Center
C (mm) |
450 |
Type of Lifiting |
Electric |
Operating Type |
Walkie |
Material |
PU |
Quantity
Driving / Balance / Bearing |
1 x + 1/2 |
Bearing Wheel Size
(mm) |
Փ 80 x 60 |
Driving Wheel Size
(mm) |
Փ 210 x 70 |
Steering Wheel Size
(mm) |
Փ 180 x 50 |
Front Wheel Tread
b11 (mm) |
560 |
Rear Wheel Tread
b10 (mm) |
760 |
Minimum Fork Height
H13 (mm) |
90 |
Maximum Fork Height
H3 (mm) |
1600 / 2000 / 2500 / 3000 |
Fork Outside Width
b3 (mm) |
710 |
Fork Inside Width
b2 (mm) |
320 |
Individual Fork Size
l/e/s (mm) |
1150 x 150 x 60 |
Overall Length
l1 (mm) |
1920 |
Overall Width
b1 (mm) |
945 |
Overall Height
h1 (mm) |
2140 / 1580 / 1830 / 2080 |
Minimum Turning Radius
Wa (mm) |
1475 / 1530 |
Travel Speed (Laden / Unladen)
(Km/h) |
3.5/4 |
Lifting Speed (Laden / Unladen)
(mm/s) |
105/170 |
Lowering Speed (Laden / Unladen)
(mm/s) |
180/170 |
Gradeability (Laden / Unladen)
(%) |
4/6 |
Drive Motor
(Kw) |
24V0.65 |
Lift Motor
(Kw) |
24V2.2 |
Battery Capacity
(V/Ah) |
2 x 12/65 |
Charger
(V/Ah) |
24/12 |
Battery Weight
(kg) |
2 x 18.2 ± 0.5 |
Net Weight
(kg) |
360 / 420 / 425 / 455 |
