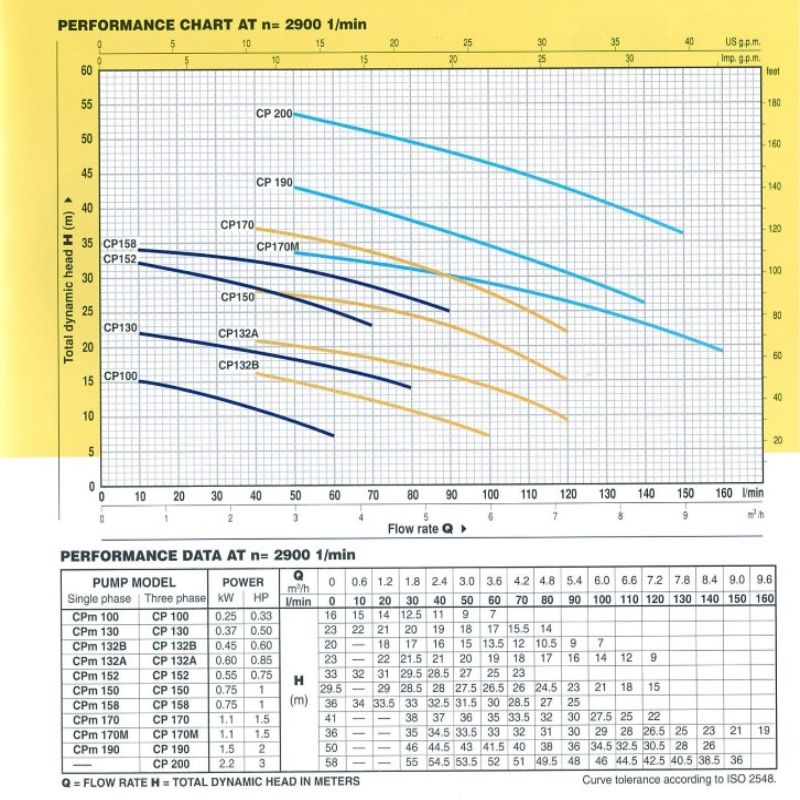

PERFORMANCE RANGE
Flow rate up to 160 l/min (9.6m3 /h)
Dynamic head up to 58 m
OPERATING LIMITS
Suction lift up to 7 m
Fluid temperature up to + 600C
Maximum ambient temperature + 400C
STRUCTURAL CHARACTERISTICS
Flow rate up to 160 l/min (9.6m3 /h)
Dynamic head up to 58 m
OPERATING LIMITS
Suction lift up to 7 m
Fluid temperature up to + 600C
Maximum ambient temperature + 400C
STRUCTURAL CHARACTERISTICS
-
PUMP BODY
- cast iron, with UNI ISO 228/1 gas threaded suction and delivery openings.
-
PUMP BODY COVER
- AISI 304 stainless steel, in cast iron on more powerful models.
-
IMPELLER
- brass centrifugal radial flow (technopolymer impeller on request).
-
MOTOR SHAFT
- AISI 430F stainless steel (AISI 416 up to 0.60 kW).
-
MECHANICAL SEAL :
- ceramic and graphite.
-
MOTOR
- The pumps are coupledtoan asynchronous, high efficiency PEDROLLO induction motor of suitable size, which is quiet, closed and externally ventilated, with an ''IM B3'' structual shape, suitable for continuous duty. INSULATION class F (B up to 0.75 kW).
- The thermal cutout relay (motor protector) is incorporatedin single phase motors.
- Three phase motors require an adequate external motor protector, with connections according to current standards.
-
PROTECTION
- IP 44.
- REGISTERED MODEL n0 72753
