Description

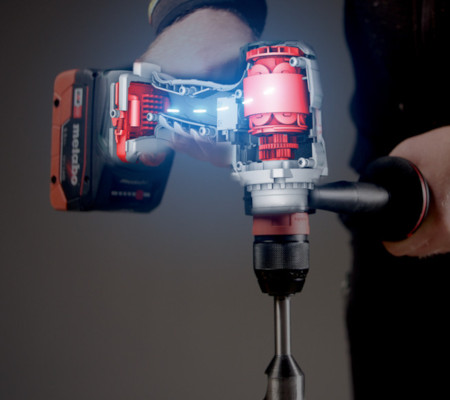

• Brushless hammer drill with maximum power for demanding applications
• Hammer drill function for drilling in masonry
• Metabo Quick System quick change of bit retainer and bits, for flexible working
• Selectable ''impuls'' mode for removal of stubborn screws and for spot-drilling on smooth surfaces
• Precision Stop: electronic torque control with increased precision for precise, delicate working
• Overload protection: protects the motor from overheating
• Electronic safety shutdown; no kickback aif the drill bit stops unexpectedly - for high user safety
• Integrated LED work light with night light function for optimal brightness in the work area
• With handy belt hook and bit case which can be fixed either on the right or left side
The machine shown may differ in equipment and technical details depending on the configuration
Technical Specifications
Model |
SB18 LTX BL Q I SET |
Type of battery pack |
Li-Power |
Battery voltage |
18 V |
Battery |
2 |
Maximum torque - soft |
65 Nm / 575 in-lbs |
Pulse torque |
65 Nm / 575 in-lbs |
Maximum torque - hard |
130 Nm/ 1151 ft.lbs |
Adjustable torque |
1 - 20 Nm // 9 -177 in-lbs |
Drill Ø masonry |
16 mm/ 5/8'' |
Drill-Ø steel |
13 mm / 1/2 '' |
Drill-Ø soft wood |
68 mm / 2.68'' |
No load speed |
0 - 550/ 0 - 2000 rpm |
Maximum impact rate |
38000 bpm |
Chuck capacity |
1.5 - 13 mm | 1/16 - 1/2'' |
Weight without battery pack |
1.8 kg / 4 lbs |
Weight with battery pack |
2.5 kg /5.5 lbs |
Vibration |
|
Drilling in metal |
2.6 m/s |
Uncertainty of measurement K |
1.5 m/s |
Impact drilling concrete |
16.5 m/s |
Uncertainty of measurement K |
1.7 m/s |
Noise emission |
|
Sound pressure level |
92 dB(A) |
Sound power level (LwA) |
103 dB(A) |
Uncertainty of measurement K |
3 dB(A) |
